塑料绝缘节造电缆
塑料绝缘节造电缆是以纯铜为导电芯，表裹 PVC 或环保低烟无卤塑料绝缘层，能不变传输信号与少量电能，还具备防滋扰、耐油污酸碱、防潮的职能，重要用于 450/750V 以下的工业设备节造、仪器衔接、楼宇灯光空调节造，以及地铁、医院等场景的设备信号传输。 产品尺度 本产品按GB/T 9330《塑料绝缘节造电缆》及企业尺度造作。 合用领域 本产品合用于额定电压 450/750V及以下节造、信号、；ぜ罢闪肯低辰酉咧。 使用个性1. 额定电压Uo/U: 450/750V2. 电缆导体的允许持久工作温度上限：聚氯乙烯绝缘 70℃。3. 短路时(至多持续功夫不超过5s)电缆导体的温度上限不超过：聚氯乙烯绝缘 160℃。4. 电缆敷设时环境温杜爪不低于0℃5. 推荐的允许弯曲半径无铠装层的电缆，应不幼于电缆表径的6倍;有铠装或铜带屏蔽结构的电缆，应不幼于电缆表径的12倍;有屏蔽层结构的软电缆，应不幼于电缆表径的6倍。 型号名称芯数截面KVVR铜芯聚氯乙烯绝缘聚氯乙烯护套节造软电缆2 - 600.5 - 10KVVRP铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽节造软电缆2 - 600.5 - 10型号规格近似表径 (mm)电缆近似沉量 (kg/km)KVVR2×0.56.754KVVR3×0.5763KVVR4×0.57.677KVVR5×0.58.287KVVR6×0.58.8100KVVR7×0.58.8105KVVR8×0.59.5120KVVR9×0.510.3134KVVR10×0.511148KVVR11×0.511155KVVR12×0.511163KVVR13×0.511.4176KVVR14×0.511.4186KVVR15×0.512197KVVR16×0.512206KVVR17×0.513.2236KVVR18×0.513.2244KVVR19×0.513.2254KVVR20×0.513.5264KVVR21×0.513.8275KVVR22×0.514.1290KVVR23×0.515.3303KVVR24×0.515.3313KVVR25×0.516.1324KVVR26×0.516.1335KVVR27×0.516.1341KVVR28×0.516.7354KVVR29×0.516.7363KVVR30×0.516.7371KVVR31×0.517.3386KVVR32×0.517.3395KVVR33×0.517.3403KVVR34×0.517.9417KVVR35×0.517.9426KVVR36×0.517.9434KVVR37×0.517.9441KVVR2×0.757.262KVVR3×0.757.575KVVR4×0.758.189KVVR5×0.758.8103KVVR6×0.759.4120KVVR7×0.759.4131KVVR8×0.7510.1147KVVR9×0.7511163KVVR10×0.7511.7179KVVR11×0.7512.1193KVVR12×0.7512.1204KVVR13×0.7513.3237KVVR14×0.7513.3249KVVR15×0.7513.9265KVVR16×0.7513.9276KVVR17×0.7514.6293KVVR18×0.7514.6304KVVR19×0.7514.6316KVVR20×0.7515330KVVR21×0.7515.3344KVVR22×0.7516.3362KVVR23×0.7517378KVVR24×0.7517.3390KVVR25×0.7517.3404KVVR26×0.7517.3415KVVR27×0.7517.3427KVVR28×0.7517.9443KVVR29×0.7517.9454KVVR30×0.7517.9466KVVR31×0.7518.6428KVVR32×0.7518.6494KVVR33×0.7518.6505KVVR34×0.7519.7540KVVR35×0.7519.7551KVVR36×0.7519.7562KVVR37×0.7519.7574KVVR2×17.367KVVR3×17.788KVVR4×18.3101KVVR5×19117KVVR6×19.7135KVVR7×19.8149KVVR8×110.4166KVVR9×111.4185KVVR10×112.1203KVVR11×113.1236KVVR12×113.1250KVVR13×113.1263KVVR14×113.1277KVVR15×114.4300KVVR16×114.4313KVVR17×115.2332KVVR18×115.2345KVVR19×115.2359KVVR20×115.6375KVVR21×115.9391KVVR22×116.3411KVVR23×117.6429KVVR24×117.6443KVVR25×117.9460KVVR26×117.9473KVVR27×117.9487KVVR28×118.5505KVVR29×118.5518KVVR30×118.5532KVVR31×119.6568KVVR32×119.6581KVVR33×119.6595KVVR34×120.4614KVVR35×120.4628KVVR36×120.4641KVVR37×120.4655KVVRP2×0.57.168KVVRP3×0.57.479KVVRP4×0.5893KVVRP5×0.58.6107KVVRP6×0.59.2121KVVRP7×0.59.2129KVVRP8×0.59.9143KVVRP9×0.510.7160KVVRP10×0.511.3173KVVRP11×0.511.3182KVVRP12×0.511.3191KVVRP13×0.511.3200KVVRP14×0.511.3209KVVRP15×0.513244KVVRP16×0.513253KVVRP17×0.513.6268KVVRP18×0.513.6277KVVRP19×0.513.6285KVVRP20×0.513.9297KVVRP21×0.514.2308KVVRP22×0.515325KVVRP23×0.515.6340KVVRP24×0.515.6349KVVRP25×0.516.5365KVVRP26×0.516.5374KVVRP27×0.516.5383KVVRP28×0.517397KVVRP29×0.517405KVVRP30×0.517414KVVRP31×0.517.6429KVVRP32×0.517.6438KVVRP33×0.517.6447KVVRP34×0.518.3461KVVRP35×0.518.3470KVVRP36×0.518.3479KVVRP37×0.518.3488KVVRP2×0.757.577KVVRP3×0.757.991KVVRP4×0.758.5107KVVRP5×0.759.1124KVVRP6×0.759.8142KVVRP7×0.759.8153KVVRP8×0.7510.5170KVVRP9×0.7511.4189KVVRP10×0.7512.1206KVVRP11×0.7512.1218KVVRP12×0.7512.1229KVVRP13×0.7512.1240KVVRP14×0.7512.1252KVVRP15×0.7513.9292KVVRP16×0.7513.9304KVVRP17×0.7514.6321KVVRP18×0.7514.6333KVVRP19×0.7514.6344KVVRP20×0.7514.9359KVVRP21×0.7515.2374KVVRP22×0.7516.1394KVVRP23×0.7516.8411KVVRP24×0.7516.8423KVVRP25×0.7517.7443KVVRP26×0.7517.7454KVVRP27×0.7517.7466KVVRP28×0.7518.3482KVVRP29×0.7518.3494KVVRP30×0.7518.3505KVVRP31×0.7519524KVVRP32×0.7519535KVVRP33×0.7519546KVVRP34×0.7520.1582KVVRP35×0.7520.1594KVVRP36×0.7520.1605KVVRP37×0.7520.1617KVVRP2×17.783KVVRP3×18.199KVVRP4×18.7118KVVRP5×19.4138KVVRP6×110.1157KVVRP7×110.1171KVVRP8×110.8190KVVRP9×111.8212KVVRP10×113.1250KVVRP11×113.1263KVVRP12×113.1277KVVRP13×113.1290KVVRP14×113.1304KVVRP15×114.3330KVVRP16×114.3344KVVRP17×115364KVVRP18×115378KVVRP19×115392KVVRP20×115.4409KVVRP21×115.8425KVVRP22×116.7449<table cellpadding="0"

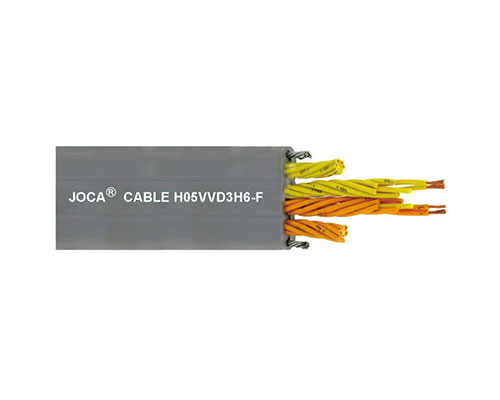

H05VVD3H6-F （0.75mm2-1mm2 3-24 芯，25-60 芯）
H05VVD3H6-F Application Scope:Suitable for traveling inside the elevator free-hanging suspended over 80 meters in length, and moving speed no more than 4 m / s , cable can also be used as a travel lift and cable reel cableH05VVD3H6-F Structure:Conductor: stranded bare copper or tinned copper comply with VDE 0295 CLASS 5 & CLASS 6, IEC 228Insulation: PVC / TI2 PVC comply with DIN VDE 0281.Color ID: in line with standard HD 308Reinforcement:Galvanized steel wireSheath material: PVC / TM2 PVCApplication Standard:HD21, VDE 0281, EN 50214-2006H05VVD3H6-F Characteristics and Compliance:Features: excellent resistance to ?ex;good oil resistance, cold resistance, moisture resistance excellent wear resistance, withstand greater mechanical stressConformity Approval: ROHS CEH05VVD3H6-F Technical Parameters:Rated Voltage: 300/500V Test Voltage: insulation thickness ≤ 0.6: 1500V,Final test: 2000VMin. Bending RadiusCable laying installation allows bending radius should be not less than 6 times the cable small side.Temperature Range: -15 To +70 ℃?ame test: VDE0472 804 part by Class B Experimental and IEC332-1
H05V2V2-F，H05V2V2H2-F
H05V2V2-F，H05V2V2H2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H05V2V2-F，H05V2V2H2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH05V2V2-F，H05V2V2H2-F Features & Conformity:Features: Super ?ne conductor, ?exible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH05V2V2-F，H05V2V2H2-F Technical Parameters:Rated Voltage：300/500VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +90℃Movable Installation：-5 To +90℃
H03VV-F，H03VVH2-F
H03VV-F，H03VVH2-F Application Scope:Available for external & internal wiring of electrical instrument, power device & automatic device without forcible traction. Without direction, at times for movable wiring.H03VV-F，H03VVH2-F Structure:Conductor: Stranded bare copper or tinned copper in accordance with VDE 0281 Part 5, HD21.5S3 IEC 227-5Insulation: PVC/TM2PVC in accordance with DIN VDE 0281.Color ID: In accordance with HD 402 StandardJacket Material: PVC/TM2 PVCApplication Standard:HD21.5, VDE 0281, CEI 20-20/5, CEI 20-35 (EN60332-1), CEI 20-52,CE(Low voltage)73/23/EEC & 93/68/EECH03VV-F，H03VVH2-F Features & Conformity:Features: Super ?ne conductor, ?exible for small bending angle Durable for certain external mechanical forcesIn accordance with EU coordination standardConformity Approval: RoHS CEH03VV-F，H03VVH2-F Technical Parameters:Rated Voltage：300/300VTest Voltage：2000V HD21.2 In accordance with DIN VDE 0281 Part 2 HD21.2Min. Bending RadiusFixed Installation：5×D（Cable OD）Movable Installation：8×D（Cable OD）Temperature RangeFixed Installation：-20 To +70℃Movable Installation：-5 To +70℃
TUV双认证光伏线 EN50618/IEC62930
合用领域 合用于光伏系统直流侧,导线与接地之间的直流电压为1.5kV,适合与二级设备一路使用,拥有交联绝缘和护套的低烟无卤、柔性电缆。 结构 导体：EN 50618中第5种镀锡铜软导体 绝缘：125°C辐照交联低烟无卤阻燃聚烯烃 护套：125°C辐照交联低烟无卤阻燃聚烯烃 色彩：红色或玄色 技术指标 额定电压：UO/U 1.0/1.0KV(AC)1500V(DC) 测试电压：AC6.5KV/5min(20°C+0.5)或DC15KV/5min(20°C士0.5)不击穿 环境温度：-40”C-+909C 导体最高温度：120°C 预期的使用寿命：25年 弯曲半径：>4D个性与切合性 防火性:EN 60332-1-2 耐风化/抗紫表线:EN 50289-4-17/ENISO4892 卤素测定:EN 50525 盐雾排放:EC61034 切合认证:ROHS TUV 执行尺度:EN 50218:2014/IEC60930:2017 产品个性 抗紫表线和臭氧、耐水解耐高温,使用寿命长达25年以上优良的柔韧性,装置敷设方便无卤低烟材质,切合环保要求适应于所有常用的衔接器结构尺寸及参数载流量急剧选型参照表
美标TUV光伏电缆
合用领域 重要用于布线互连布线的接地和不接地的光伏发电系统结构 导体:UL4703中镀锡铜软导体 绝缘:125°C辐照交联低烟无卤阻燃聚烯烃 护套:125°C辐照交联低烟无卤阻燃聚烯烃 色彩:玄色或红色技术指标 额定电压:600V(AC)、1000V(AC)、2000V(AC) 环境温度:-40°C~+90°C 导体最高温度:125°C 最大短路温度:≤250°C/5S 预期的使用寿命:25年 弯曲半径:≥4D个性与切合性 防火性:UL2556 耐气象性:UL2556 低温测试:UL2556 切合认证: ROHS UL 执行尺度:UL4703产品个性 电子束交联化合物抗紫表线和臭氧、耐高温,资料不会溶解或流动优良的冷柔韧性寿命长,在90°C高温下大于25年合用于所有常用衔接器结构尺寸及参数
德标TUV光伏电缆
合用领域 合用于光伏系统直流侧使用的单芯软电缆(软线)，其最大可允许电压为1.8千伏直流(导体-导体,不接地系统)。电缆适合用于安全等级I的情况。允许以多结构的方式，将这些电缆衔接起来。该电缆的设计主张是用于在室温下操作,最高温度可达90°C。结构 导体：2Pg1169中第5种镀锡铜软导体 绝缘：125°C辐照交联低烟无卤阻燃聚烯烃 护套：125°C辐照交联低烟无卤阻燃聚烯烃 色彩：红色或玄色技术指标 额定电压：UO/U 0.6/1KV(AC)1800DC(非负载) 测试电压：AC6.5KW/5min(20°C士0.5) 或DC15KV/5min(20°C士0.5)不击穿 环境温度：-40°C~+90°C 导体最高温度：120°C 最大短路温度：<250°C/5S 预期的使用寿命：25年 弯曲半径：>4D个性与切合性 防火性：EN 60332-1-2 耐酸、碱溶液：EN 60811-2-1 卤素测定：EN 50267/EN 60684 耐风化/抗紫表线：HD 605/A1 切合认证：ROHS TUV 执行尺度：2Pfg1169/08.2007产品个性 抗紫表线和臭氧、耐水解耐高温,使用寿命长达25年以上优良的柔韧性,装置敷设方便无卤低烟材质,切合环保要求适应于所有常用的衔接器结构尺寸及参数载流量急剧选型参照表
铝合金光伏电缆
合用领域 用于光伏发电系统中直流侧的光伏组件与组件之间的串联电缆、组串之间组串至直流配电箱(汇流箱)之间的并联电缢和直流配电箱至逆变器之间的满足室表环境要求的铝合金导体光伏发电系统用电缆结构 导体：2PFG 2642中第五种铝合金软导体 绝缘：120°C交联无卤低烟阻燃聚烯烃 护套：120C交联无卤低烟阻燃聚烯经 色彩：红色或玄色技术指标额定电压：DC1500V测试电压：AC6.5kV/5min或DC15kw/5min不击穿空气敷设时导体最高工作温度：120°C/2000h导体持久工作温度：90°C环境温度：-40°C~+90°C最大短路温度：≤250℃/5S预期使用寿命：25年弯曲半径：6 X D个性与切合性防火机能：EC60332-1盐雾排放：IEC61034;EN 50268-2低火警荷载： DIN 51900产品认证：TUV2PFG 2642/01.22产品个性 减轻电缆沉量具备耐臭氧、耐酸碱和耐环境气象等耐表部环境特点25年长命命降低装置成本,可直埋,可用于多组件串并联，载流量满足要求，铝导体机械机能达标，铜铝衔接安全，铜铝衔接器和电缆衔接铜铝衔接器的要求 需使用切合EC62852,IEC61238以及2pg尺度有关要求的铜铝衔接器,鉴于铜铝衔接器仍在不休技术进取,分歧品牌型号的电缆与衔接器之间的匹配可能会出现问题，建议特定品牌型号的衔接器必要与特定品牌型号的铝合金光伏电缆进行搭配。结构尺寸及参数载流量急剧选型参照表 注：A * 暗示铝或铝合金导体标称截面积 (mm?)。
EN/IEC 电动汽车互换充电电缆
利用领域电动车辆供电，并在必要时为电动车辆提供通讯。充电电缆合用于 EN61851-1的充电模式 1-3。本产品额定电压为 300/500V的电缆仅允许用于 EN61851-1的充电模式 1.电缆结构1.导体：精密无氧铜丝，切合GB/T3956-2008中5类或6类软铜导线2.绝缘：切合 IEC/EN 要求的 EVI-1 或 EVI-23.色彩鉴别：切合 EN50525-1：2011 中所述的彩色绝缘鉴别4.绞合：各组件绞合在一路5.屏蔽：铜丝屏蔽(可选)6.护套：切合 IEC/EN 要求的 EVM-1 或 EVM-27.通例色彩：玄色(可选)个性切合 EN50620:2017与IEC62893-3 要求耐候性/抗紫表线性，切合 EN50620 AnnexF阻燃，切合 EN60332-1-2:2004/A1:2015耐酸碱，切合 EN50620 Annex D耐矿物油，切合 EN60811-404耐扯破，切合 EN50396:2005切合 RoHS 2.0技术参数：1.额定电压：300/500V、450/750V2.测试电压：500V/15min、3500V/15min3.弯曲半径：6D4.贮存温度：45°C5.导体最高工作温度：90°C6.最幼装置环境温度：-35°C
国标与 DEKRA 电动 汽车直流充电电缆
利用领域合用于电动汽车充电设备及充电接口或拥有对充电鼓和、安全预警等方面的节造信号传输职能的车辆充放电预警节造系统。 电缆结构1. 导体:精密无氧铜丝，切合GB/T3956-2008中5类或6类软铜导线2. 绝缘:热塑性弹性体(TPE)3. 色彩鉴别:优先选取 GB/T33594 芯线色谱，也可凭据客户需要定造4. 绞合:各组件绞合在一路5. 屏蔽:铜丝屏蔽(可选)6. 通例色彩:玄色(可选) 个性耐候性/抗紫表线性、耐刮磨、耐酸碱、阻燃、耐油、耐水解切合 GB/T33594 与 REKRA K175 要求切合 RoHS 2.0 技术参数：1. 额定电压:直流 1.0kV 及以下2. 测试电压:动力线:8.4kV/15min信号或节造线:3.6kV/15min3. 弯曲半径:6D4. 贮存温度:45°C5. 导体最高工作温度:90°C6. 最幼装置环境温度:-25°C
